Installing a Forward Assist

by
posted on May 24, 2011
** When you buy products through the links on our site, we may earn a commission that supports NRA's mission to protect, preserve and defend the Second Amendment. **

Parts
Forward-assist assemblyForward-assist springForward-assist retainer pin

Tools
3⁄32-inch roll-pin punchBrass or plastic hammer

Brownells offers several forward-assist assemblies that come ready to install. All you have to do is place the return spring over the pawl and inside the plunger cap, and you are ready to add it to the upper. Get the roll pin that holds the forward assist in place started into the receiver. Orient the forward assist and insert it into the receiver. Press the plunger against the spring while tapping the pin into place. Use a 3⁄32-inch roll-pin punch to drive the pin past flush.

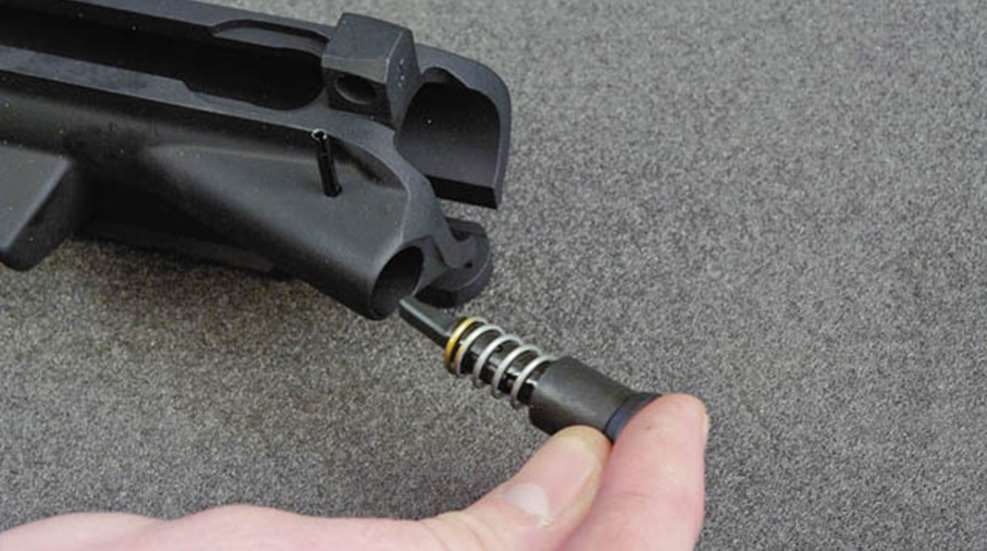

Before inserting the forward-assist assembly into its housing on the receiver, start the roll pin that holds it in place.

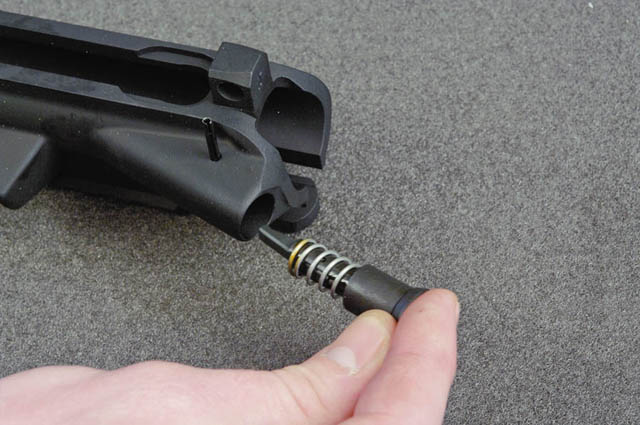

Hold the forward-assist plunger against spring tension while driving the roll pin home.
Continue tapping the roll pin with a 3⁄32-inch punch until it is past flush to complete the installation.

Function Check: Push the plunger to make sure the pawl moves forward and returns under spring pressure.
